GROUND RECESS

Venus

Technology and light performance

Features

Recessed Wallwasher diffused light L. 340

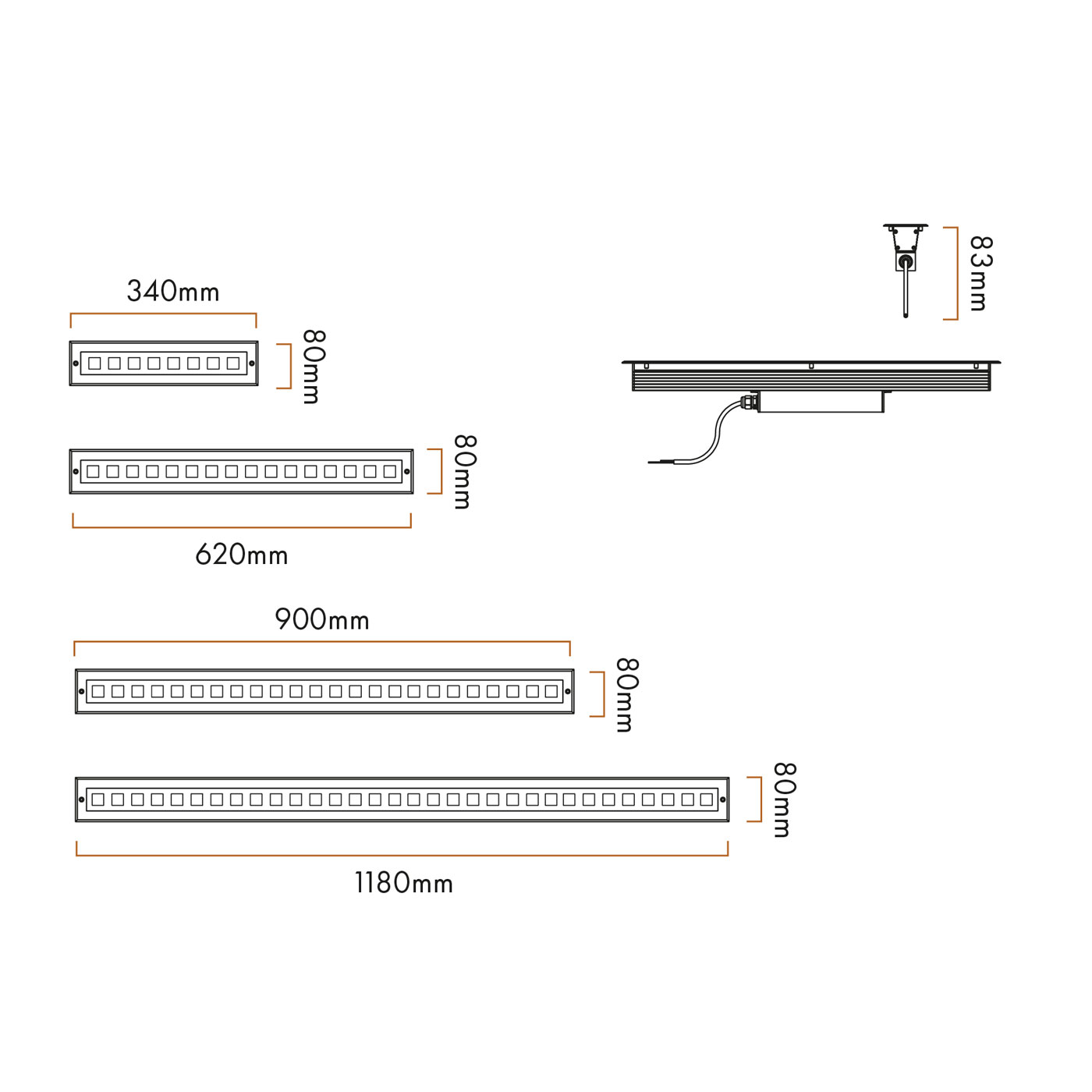

Dimensions	H 83 x L 340 x W 98

Code	Beam angle	Wattage	Source	Fixture	CCT	CL	Lumen output	Datasheet
UL2800RWR50VS99	Diffuse	8W	870lm	339lm	3000K	I	339lm
UL2800RNR50VS99	Diffuse	8W	920lm	357lm	4000K	I	357lm

Recessed Wallwasher diffused light L. 340

Dimensions	H 83 x L 340 x W 98

Code	Beam angle	Wattage	Source	Fixture	CCT	CL	Lumen output
UL2800RWP50NB99	12°	14W	1452ml	1220lm	3000K	I	1220lm
UL2800RWP50MB99	28°	14W	1452ml	1220lm	3000K	I	1220lm
UL2800RWP50OB99	42°x12°	14W	1452ml	1220lm	3000K	I	1220lm
UL2800RWP50WB99	50°	14W	1452ml	1220lm	3000K	I	1220lm
UL2800RWP50AB99	Asymmetric	14W	1452ml	1220lm	3000K	I	1220lm
UL2800RNP50NB99	12°	14W	1525ml	1281lm	4000K	I	1220lm
UL2800RNP50MB99	28°	14W	1525ml	1281lm	4000K	I	1281lm
UL2800RNP50OB99	42°x12°	14W	1525ml	1281lm	4000K	I	1281lm
UL2800RNP50WB99	50°	14W	1525ml	1281lm	4000K	I	1281lm
UL2800RNP50AB99	Asymmetric	14W	1525ml	1281lm	4000K	I	1281lm

Recessed Wallwasher diffused light L. 620

Dimensions	H 83 x L 620 x W 98

Code	Beam angle	Wattage	Source	Fixture	CCT	CL	Lumen output	Datasheet
UL2801RWR50VS99	Diffuse	13W	1740lm	678lm	3000K	I	678lm
UL2801RNR50VS99	Diffuse	13W	1840lm	718lm	4000K	I	718lm

Recessed Wallwasher diffused light L. 900

Dimensions	H 83 x L 900 x W 98

Code	Beam angle	Wattage	Source	Fixture	CCT	CL	Lumen output	Datasheet
UL2802RWR50VS99	Diffuse	19W	2610lm	1020lm	3000K	I	1020lm
UL2802RNR50VS99	Diffuse	19W	2760lm	1076lm	4000K	I	1076lm

Recessed Wallwasher diffused light L. 1180

Dimensions	H 83 x L 1180 x W 98

Code	Beam angle	Wattage	Source	Fixture	CCT	CL	Lumen output	Datasheet
UL2803RWR50VS99	Diffuse	26W	3480lm	1355lm	3000K	I	1355lm
UL2803RNR50VS99	Diffuse	26W	3680lm	1435lm	4000K	I	1435lm
